Beverages IBM Injection Blow Molding Machine For Plastic Bottle Production

Brand Name:	Zl-Qiang
Model Number:	ZQ80
MOQ:	1 set
Price:	78000
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name::

IBM Blow Moulding Machine

Screw Diameter:

Screw L/D:

22:01%

Injection Weight:

Heating Power:

Number Of Barrel Zone:

Injection Stroke:

160mm

Net Weight :

10 Ton

Supply Ability:

10 set/ Month

Highlight:

Beverage Bottle IBM Injection Blow Molding Machine

Plastic Bottle IBM Injection Blow Molding Machine

Beverages plastic bottle molding machine

Product Description

IBM Blow Moulding Machine for Bottle Production

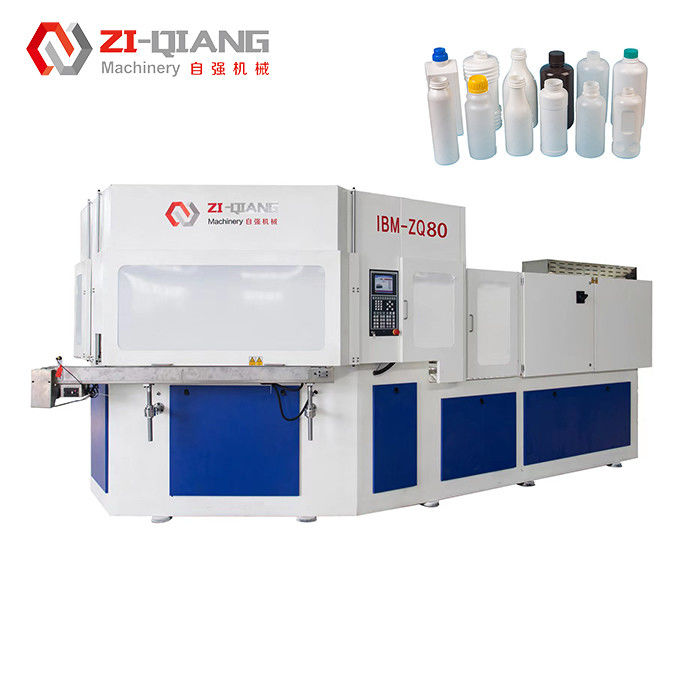

ZQ80 IBM Blow Moulding Machine PP PE Bottle 80 Ton Machine

IBM Blow Moulding Machine Description

IBM (Injection Blow Molding) machines play a vital role in the production of high-quality bottles for various industries. From pharmaceuticals to beverages, these machines offer precision and efficiency in creating hollow plastic containers.

Benefits of IBM Machines in Bottle Production

Precision: IBM machines offer precise control over the molding process, ensuring consistent bottle dimensions and quality.

Efficiency: The integration of injection and blow molding in a single machine streamlines the production process, reducing cycle times and increasing productivity.

Versatility: IBM machines can create bottles of various sizes, shapes, and designs, catering to diverse packaging needs.

IBM Blow Moulding Machine Details

Item	Unit	ZQ80
Injection System
Screw Diameter	mm	55
Screw L/D	%	22:01
Injection weight	g	314
Heating power	KW	20
Number of barrel zone		5+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	800
Opening stroke for injection	mm	140
Clamping force of blowing	KN	120
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	800*400
Mold thickness	mm	280
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22+22
Dry cycle	S	4
Total Power	KW	70
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	4.51.62
Net weight	Ton	10

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8
