IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry

Brand Name:	Zl-Qiang
Model Number:	ZQ60
MOQ:	1 set
Price:	40000
Packaging Details:	20'Container
Payment Terms:	D/A, D/P, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name::

Plastic Bottle Molding Machine

Screw Diameter:

Screw L/D:

22:01%

Injection Weight:

Heating Power:

Number Of Barrel Zone:

Net Weight :

5 Ton

Cooling Water Pressure:

0.3-0.4 MPa

Supply Ability:

10 set/ Month

Highlight:

IBM Plastic iml blow moulding machine

Bottle injection iml blow moulding machine

IBM plastic injection blow moulding machine

Product Description

IBM Plastic Bottle Molding Machine for Beverage Industry

IBM Plastic Bottle Molding Machine Description

IBM (Injection Blow Molding) machines have revolutionized the pharmaceutical packaging industry by offering advanced manufacturing capabilities.

Injection blow molding (IBM) is a manufacturing process used to produce hollow plastic parts. IBM machines are typically used to create items such as bottles and containers. IBM combines the injection molding process, where a melted plastic material is injected into a mold cavity, with the blow molding process, where the material is formed into the desired shape using compressed air.

IBM Plastic Bottle Molding Machine Details

Item	Unit	ZQ60
Injection System
Screw Diameter	mm	45
Screw L/D	%	22:01
Injection weight	g	260
Heating power	KW	14
Number of barrel zone		3+N
Injection stroke	mm	160
Clamping System
Clamping force of injection	KN	600
Opening stroke for injection	mm	140
Clamping force of blowing	KN	100
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	600*390
Mold thickness	mm	240
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	230
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	22
Dry cycle	S	4
Total Power	KW	37
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	3.51.41.8
Net weight	Ton	5

Bottle Volume
Cavity Number	Machine Model	10ml	30ml	60ml	100ml	250ml	500ml	1000ml
	ZQ40	9	8	6	4	3	2	1
	ZQ60	14	12	10	8	5	3	2
	ZQ80	20	18	14	12	8	5-6	3-4
	ZQ110	24	22	18	14	10	8	6
	ZQ135	30	26	22	18	14	10	8

IBM Injection Blow Molding Machine application

Automotive Components: IBM machines can be employed to create automotive parts such as reservoirs, fluid containers, and other hollow components.

Household Products: IBM machines are used for manufacturing a wide range of household items like detergent bottles, cleaning product containers, and storage containers.

Personal Care Products: IBM machines are suitable for producing containers for personal care products such as shampoo bottles, lotion containers, and soap dispensers.

ZIQIANG MACHINE Comapany Information :

The company's product applications cover pharmaceutical packaging, food packaging, health care packaging, cosmetic packaging, and other plastic packaging. lt canproduce 1ml-1000ml plastic products such as HDPE, LDPE, PP, PS (lactic acid bacte.ria), high transparent PS, ABS, environmental corn material, EVA, PCTG and so on.

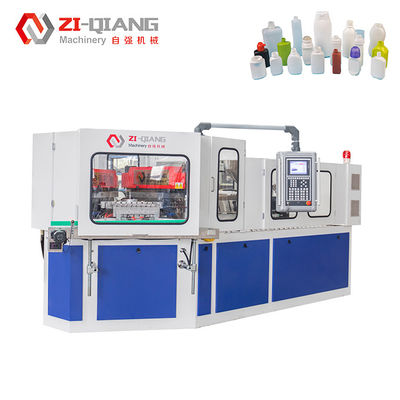

IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry 0

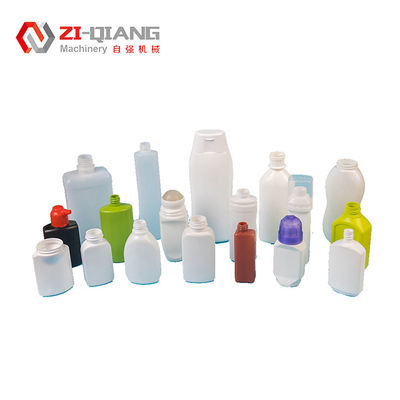

IBM Plastic Bottle injection Iml Blow Moulding Machine For Beverage Industry 1

Why choose us?

1. Provide comprehensive training for customers.

2. Ensure 100% operational stability of products before delivery.

3. Offer "pre-sales," "in-sales," and "after-sales" solutions to customers 24 hours.

4. Customized design to meet various needs of different customers.

5. 24 hours debugging, with after-sales personnel ready at all times.

6. Provide a complete set of production lines.

7. Offer online product testing equipment, image inspection, and reliable quality control.

8. Our company provides a one-year warranty for equipment molds and lifetime maintenance.
