IBM Injection Blow Molding Machine

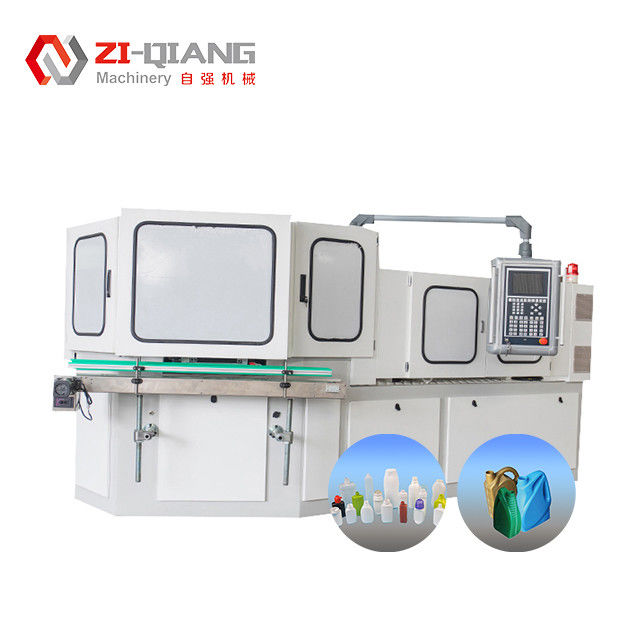

ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles

All Category

IBM Injection Blow Molding Machine

Extrusion Blow Molding Machine

Injection Stretch Blow Molding Machine

Bottle Mold

Bottle Cap Mold

MTC Mould Temperature Controller

Injection Mold Chiller

Semi Automatic Blow Molding Machine

Bottle Packaging Machine

Ms. Isabel Zhu

isabel@ziqiangmachine.com

+8613913614902

+8613913614902

Contact Now

ZQ40 Automatic Injection Blow Molding Machine for 5ml-2L Bottles

Brand Name:	Zi-Qiang
Model Number:	ZQ40
MOQ:	1
Price:	30000USD
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Suitable Bottle Range:

5ml-2L

Product Height:

≤220 Mm

Machine Weight:

4 Ton

Max. Mold Height:

Depends On Model

Specification:

IBM65D

Plastic Materials:

PP, HDPE, PE, PE/PP

Transport Package:

Film Packing

Head Heating Power:

Voltage:

Customized According To Customer Needs

Heating Power:

Compressed Air Capacity:

0.7M³/min

Applications:

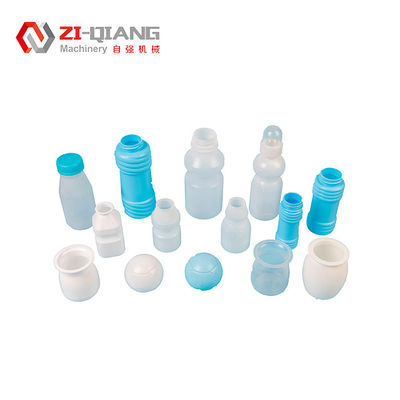

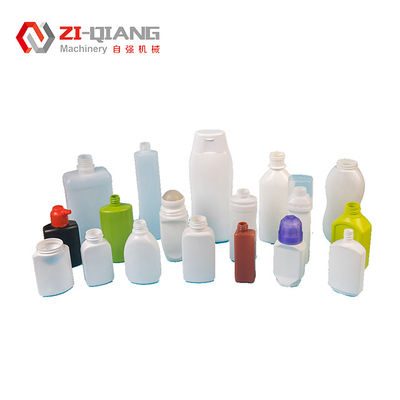

5ml To 2L Small Plastic Bottles

Injection Mold Stroke:

120 Mm

Type:

Blow Molding Machine

Production Capacity:

As Per Samples

Supply Ability:

15 SET/MONTH

Highlight:

ZQ40 automatic blow molding machine

injection blow molding machine for bottles

5ml-2L bottle molding machine

Product Description

ZQ 40 Small Fully Automatic Injection Blowing Integrated Hollow Forming Machine

Key Specifications

Attribute	Value
Suitable Bottle Range	5ml-2L
Product Height	≤220 mm
Machine Weight	4 Ton
Max. Mold Height	Depends on Model
Specification	IBM65D
Plastic Materials	PP, HDPE, PE, PE/PP
Head Heating Power	22kw
Voltage	Customized According To Customer Needs
Heating Power	30KW
Compressed Air Capacity	0.7M³/min
Applications	5ml To 2L Small Plastic Bottles
Injection Mold Stroke	120 mm
Type	Blow Molding Machine

Technical Specifications

Item	Unit	ZQ40
Injection System
Screw Diameter	mm	40
Screw L/D	%	21:1
Injection weight	g	140
Heating power	KW	7.5
Number of barrel zone		3+N
Injection stroke	mm	120
Clamping System
Clamping force of injection	KN	400
Opening stroke for injection	mm	140
Clamping force of blowing	KN	60
Opening stroke for blowing	mm	140
Lifing height of rotary table	mm	70
Mould
Max.Platen size(L*W)	mm	480*340
Mold thickness	mm	180
Dia.of bottle	mm	120
Bottle height	mm	220
Suitable bottle height	mm	1-1000
Stripping stroke	mm	220
Hydraulic system
Hydraulic Pressure	Map	14
Motor power	KW	11
Dry cycle	S	4
Total Power	KW	20
Operating power	%	52-70
Others
Min.Air pressure of compressed air	MPa	0.7-1.2
Compressed air capacity	M³/min	0.7
Water flowage	M³/h	4
Cooling water pressure	MPa	0.3-0.4
Dimension(LWH)	M	31.31.7
Net weight	Ton	3.8
